Identifying Common Truck Electrical Wiring Issues Early – Heavy trucks need electrical systems to operate well. They power a range of devices, from the lighting, starting motor, and onboard electronics. Electrical problems can lead to breakdowns and greatly restrict your truck’s operation. In this article, we will discuss some common electrical problems that heavy trucks experience and provide tips on how to identify them.
Identifying Common Truck Electrical Wiring Issues
Faulty Wiring

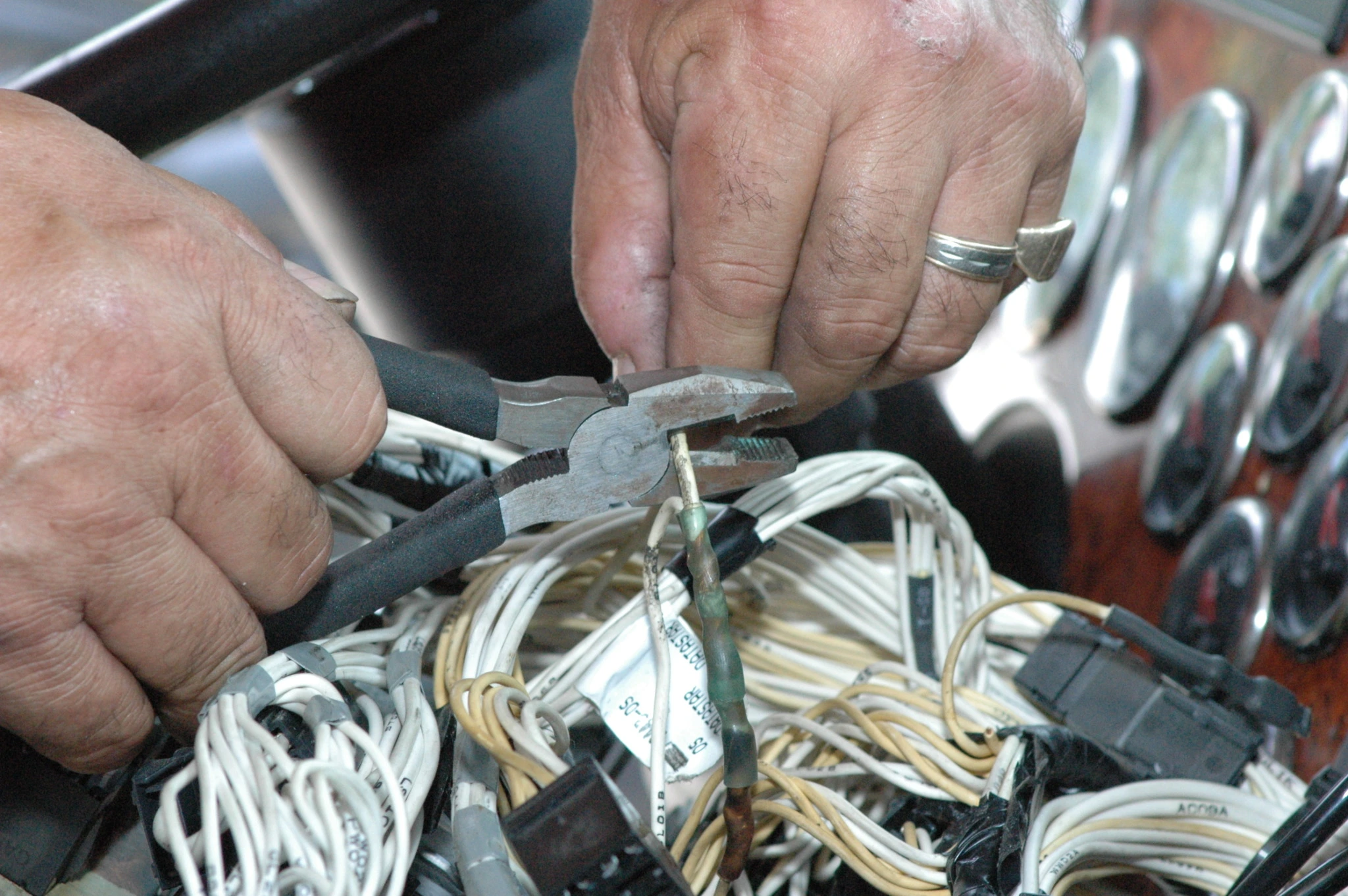

Faulty wiring can produce an assortment of electrical issues in heavy-duty trucks. Flickering lights, loss of power, or malfunctioning components are all potential signs. To diagnose wiring issues, visually check the wire harnesses for signs of damage, including frayed or melted insulation. Check especially any areas where wires could contact sharp edges or moving parts.
Test the continuity of the wires using a multimeter. Start by disconnecting the battery to prevent accidental shorts. Place the probes on either end of the wire while the multimeter is in continuity mode. A low resistance reading or a continuous buzzer signal shows a good connection. In case of no continuity or a high resistance reading, the wire could be broken and needs replacement or fixing.
Unreliable Grounds
Faulty grounding may result in electrical problems in heavy-duty trucks. Symptoms are flickering lights, malfunctioning gauges, and intermittent component failure. An improper ground connection may result in erratic behavior by preventing the normal flow of electrical current.
To determine a grounding issue, inspect the ground connections visually for loose connections, corrosion, or frayed wires. To eliminate rust or corrosion, scrub the ground connections with a wire brush. Check that the ground connections are tight and secure.
Measure the resistance between the ground terminal and a known good, high-quality ground, e.g., the car’s frame, using a multimeter. Low resistance readings indicate a good ground connection. High or infinite resistance indicates that the ground connection must be fixed.
Faulty Switches and Relays
Heavy-duty truck switches and relays control numerous electrical functions. If these fail, the system will malfunction or work erratically. The lights, wipers, and heating and air conditioning are all not working.
To diagnose the problem, physically inspect the switch or relay for evidence of corrosion or damage. Use a multimeter in continuity mode to test the switch or relay. When the switch is off, there should be no continuity between the terminals. After turning the switch on, there should be continuity. If there is no continuity or the readings are inconsistent, the switch or relay may need to be replaced.
It should be noted that it is often hard to detect electrical problems in heavy-duty trucks, and that more intricate problems might require professional help. If you are in doubt or cannot determine the problem, it is advisable that you contact a licensed technician or electrician who specializes in heavy-duty trucks.
Destroyed Fuses
Heavy-duty trucks also tend to have blown fuses from time to time, which can lead to the loss of electricity to some systems or components. Some systems, such as the headlights or windscreen wipers, can cease to function with a blown fuse. Troubleshoot by locating the fuse box and using the truck owner’s handbook to choose the fuse of the system that is not functioning.
Inspect the fuse visually for signs of damage, including a cracked filament or discoloured appearance. A multimeter can be used to test the continuity of the fuse. Insert the multimeter probes on either side of the fuse and check for a continuous circuit. If there is no continuity, the fuse has blown and should be replaced with a new one of the same rating.
Battery Charging Problems
The battery can also drain due to charging system faults, refusing to start or even resulting in total power loss. If your battery is losing charge or cannot retain charge on a regular basis, then the charging system could be faulty.
Start by checking the condition of the drive belt connecting the crankshaft of the engine and the alternator. In case the belt is loose or damaged, the alternator can’t generate enough power to charge the battery. Check the belt for looseness, frays, cracks. Replace it with a new belt or tighten the belt if necessary.
Finally, use a multimeter to check the alternator output. With the engine running, attach the multimeter to the battery connectors. The voltage should be between 13.8 and 14.2 volts. If the voltage drops below this point, the voltage regulator or diode of the alternator will fail. Expert help might be required for charging system diagnosis and fix.
Contact Details
Company Name: BM Mobile Truck Tyre & Wash Services
Address: 1119 Port Wakefield Rd, Waterloo Corner SA 5110, Australia
Phone No. – +61 469 826 431, +61 410 999 606
Email ID—bmtruckwash@gmail.com
Verdict
Electrical problems can greatly affect the reliability and performance of a heavy-duty truck. You are able to accurately determine common electrical problems, including dead batteries, defective wiring, inadequate grounding, and defective switches and relays, and take the required repair actions. Routine inspections, routine maintenance, and prompt fixing of any electrical problems will guarantee your heavy-duty truck’s electrical system to be in prime operating conditions. This guarantees your truck’s smooth operation.
Frequently Asked Questions
Q: Can poor wiring influence performance or fuel economy?
A: Yes. Engine performance and fuel economy can decrease as a consequence of inefficient engine operation due to malfunctioning sensors or control modules (as a result of poor wiring).
Q: Should I attempt to make my own electrical repairs?
A: Minor fixes (like replacing fuses or connectors) can be undertaken by yourself if you understand how to work with electricity and possess the right tools. Nevertheless, to prevent further damage or safety risks, advanced issues should only be addressed by a qualified technician.
Q: Where are electrical faults most likely to occur?
A: They occur:
- Ground connection and battery terminals
- Near moving parts (because of chafing or vibration)
- Around trailer connectors
- (Exposed to water and road salt) under the cab.
